Place of Origin:
SHAANXI, CHINA
Brand Name:
WelandSignal
Certification:
ROHS, CE
Model Number:
AFS400

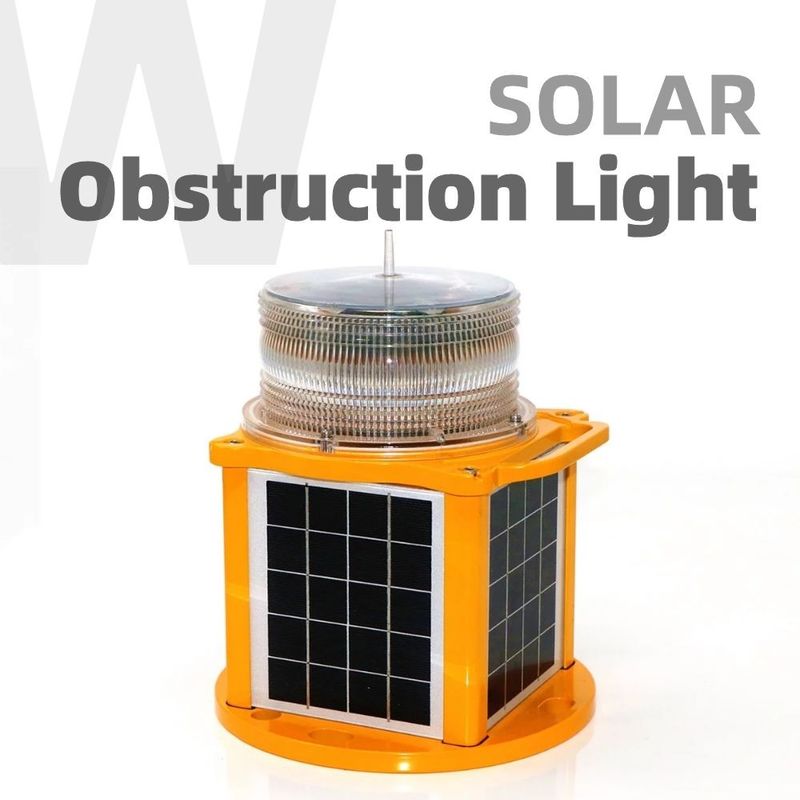

AFS400 GPS Synchronization Solar LED Aviation Obstruction Light
Synchronized flashing of navigation lights has been widely used in aviation obstruction lights. The method can be divided into the application of a centralized control box or the use of the son-mother lamp to realize synchronous control. We found that when the main lamp failed, all other sub lamps could not work normally. Therefore, WelandSignalTM implanted GPS timing module inside the aviation obstruction lights, and the driver accepts the GPS satellite clock timing signal. Even when the next phase of the project is installed, the product will still achieve synchronous flashing with the previous product, which has a strong security vision. The waterproof grade IP67 or above of the aviation lights synchronized by GPS can adapt to the harsh environment of sea water without manual maintenance. It is also the first domestic manufacturer to adopt GPS to achieve synchronous flashing.
SPECIFICATIONS
|
AFS400 GPS Synchronization Solar LED Aviation Obstruction Light
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
200-1500cd adjustable |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 3W * 4pcs mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 12.8V4AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
NOTE:
KEY FEATURES
SIZE (mm)
Package Include
